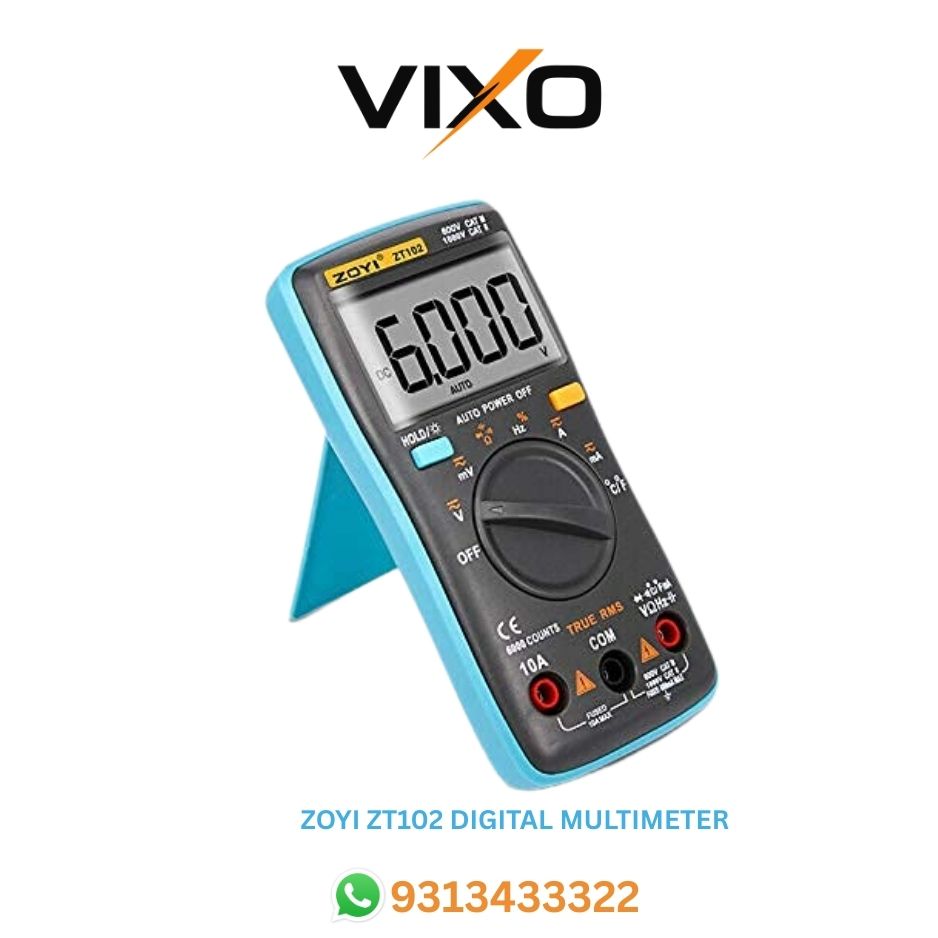

ZOYI Auto Range Digital Multimeter Ammeter DC AC Voltmeter Resistance Frequency Diode Meter Backlight ZT102A ZT100 ZT101 ZT102
MULTIMETER FEATURES :-
Model number:ZT102
Material: ABS
Color: Gray & Blue
Sample rate: 3 times per second
Display: 6000 Counts
Auto range: Yes
Ture RMS :Yes
Date hold :Yes
Low voltage indication: Yes
Auto power off: Yes
Over range indication: OL
Backlight: Yes
Diode test: Yes
Continuity test: Yes
Main measurements :AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode ,Continuity Testing and Temperature.
DC volts:60mV/600mV(0.5%+3),6V/60V/600V/1000V(0.5%+3)
AC volts:6V/60V/600V/750V(1.0%+3),60mV/600mV(1.0%+3)
DC current:6A/10A(1.2%+3),60mA/600mA(1.2%+3)
AC current:6A/10A(1.5%+3),60mA/600mA(1.5%+3)
Resistance:600O/6KO/60KO/600KO/6MO(0.5%+3),60MO(1.5%+3)
Capacitance:9.999nF(5.0%+20)
99.99nF/999.9nF/9.999F/99.99F/999.9F(2.0%+5)
9.999mF(5.0%+5)
Frequency:99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz(0.1%+2)
Duty Cycle:1%~99%( 0.1%+2)
Temperature:(-20~1000)?(2.5%+5)
(-4~1832)?(2.5%+5)
Working environment: 0~40C, relative humidity<75%
Supply power:1.5V AAA battery * 2 (not included)
Product Weight:127g
Product Size:125mm * 65mm * 24 mm
Package Size:16 * 9.7 * 4.5cm / 6.3 * 3.8 * 1.8in
Package Weight:251g/0.55lb
Package List:
1 x Digital Multimeter
2 x Test Leads
1 x Temperature Test Cable
1 x English Manual
1 x Cloth bag
Condition – Brand New
Warranty – 30 Days
No Return .
Please check model Number and match with your Product.
Every product proper check Before Shipping
Shipping facility available in all India.
Fast shipping
Compatible with models
