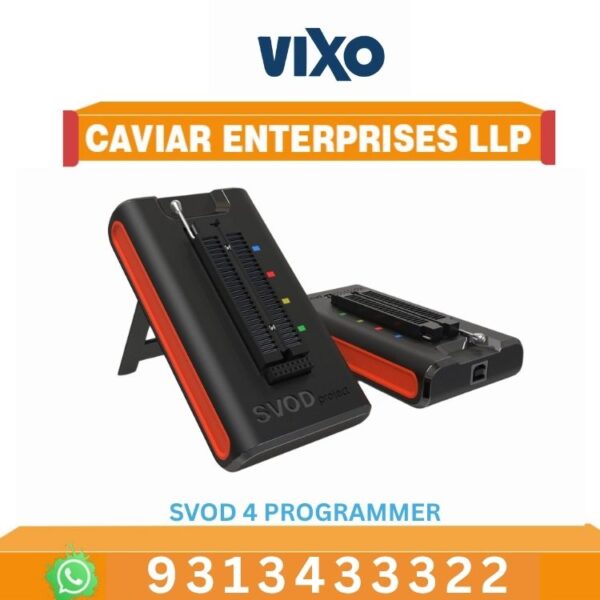

Model – SVOD4 BIOS PROGRAMMER
Version : 4th
Specifications:
– port for connecting to a computer: usb 2.0 high speed,
– high-speed ARM7 processor at 550 MHz,
– connection to IC: zif 48 + 16 pin connector
– number of input-output ports: 56
– supply voltage: 12V, 5V, 3.3V, 3.0V, 2.8V, 2.7V, 2.5V, 1.8v, 1.2V.
– work with EC ITE, ENE, NUVOTON, MEC, EPFxxx, Lattice. battery, read POST codes, RTS54**, MP2949,2940,2945,2888,2845
Supported protocols:
SPI, I2C, SMBUS, 1-Wire, NAND, NOR, EMMC, JTAG, UART, CAN, parallel synchronous and asynchronous protocols.
Automatic detection of “bad contact” when connecting IC.
SPECIFICATION :
1 pcs Programmer SVOD Ver. 4
1 pcs USB Connection Cable
1 pcs Extended Board Of Ports For Keyboard Module
Flex Cables included: 34pin, 32pin, 30pin, 26pin (All Cables What You See In Picture).
1 pcs – Socket 150 mil 8 pin

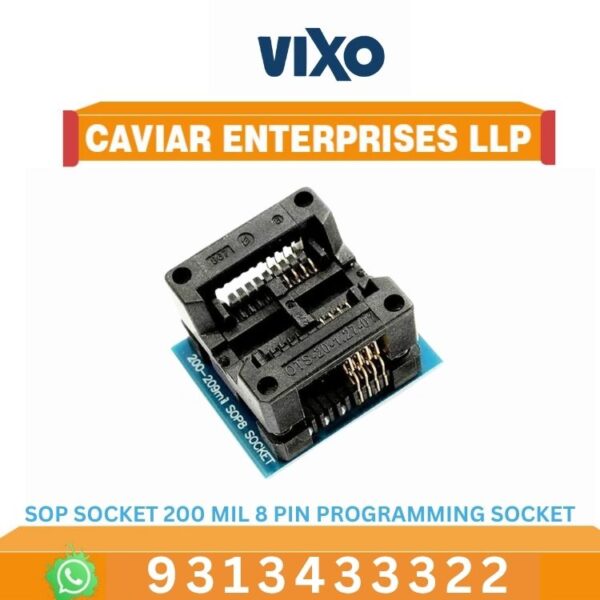

1 pcs – Socket 200 mil 8 pin
12 cables
Condition – Brand New
Weight : 1 kg
Warranty – 30 Days
No Return .
Please check model Number and match with your Product.
Every product proper check Before Shipping
Shipping facility available in all India.
Fast shipping
Compatible with models
