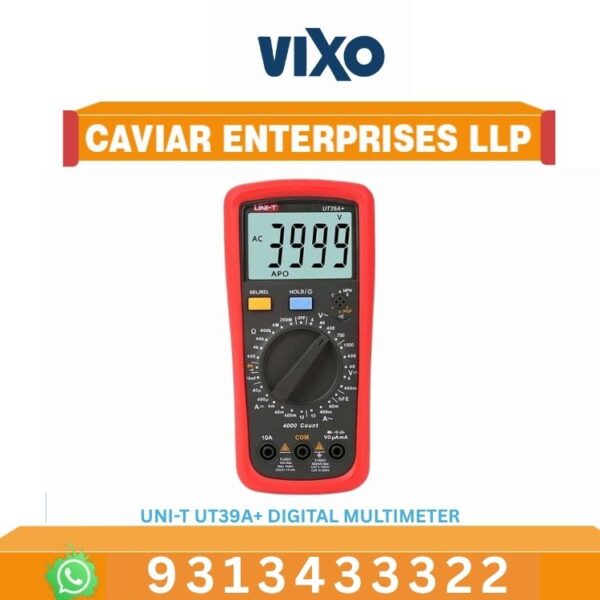

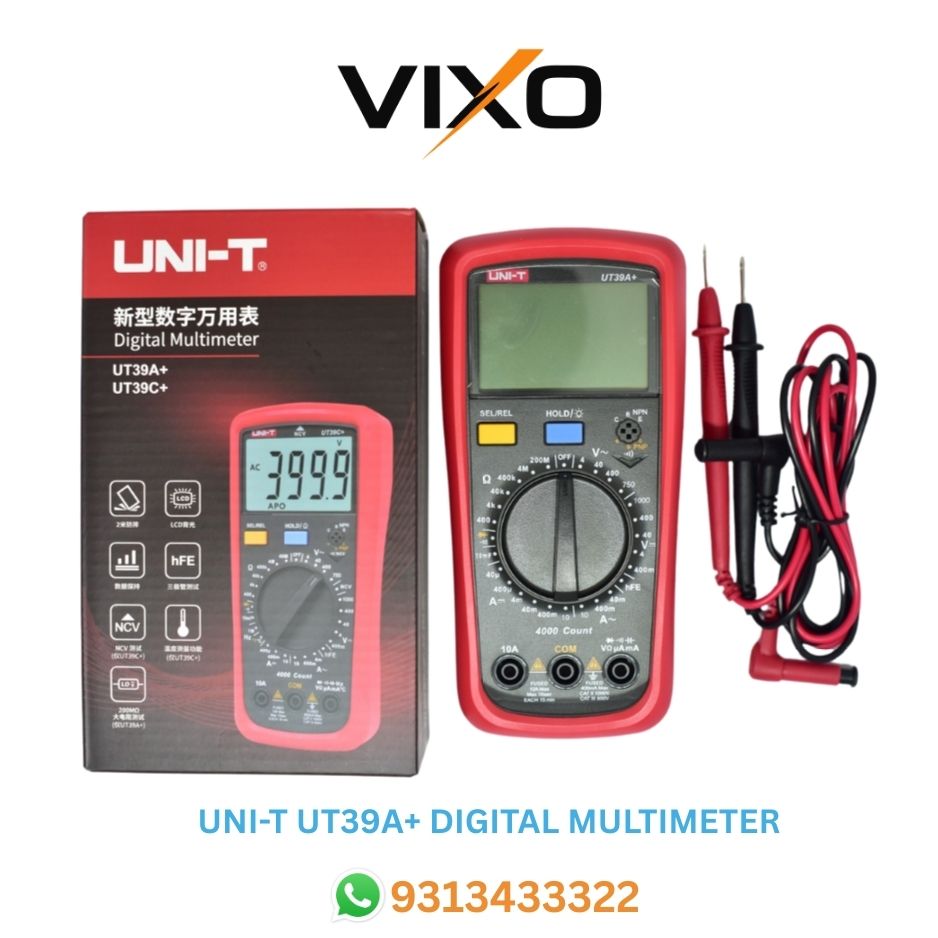

BRAND – UNI-T
MULTIMETER DETAILS:
1. 1000V DC voltage measurement
2. 750V AC voltage measurement
3. 10A DC/AC current measurement
4. Resistance/Capacitance
5. hFE
6. Diode/Continuity test
MULTIMETER FEATURE:
DC voltage (V) 400mV/4V/40V/400V/1000V ±(0.5%+5)
AC voltage (V) 4V/40V/400V/750V ±(0.8%+3)
DC current (A) 40uA/400uA/4mA/40mA/400mA/10A ±(0.8%+3)
AC current (A) 40mA/400mA/10A ±(1%+2)
Resistance (Ω) 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ ±(0.8%+2)
Capacitance (F) 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF ±(4%+5)
Display count 4000
Transistor hFE √
Diode √
Frequency response 40Hz~400Hz √
Range selection Manual
Continuity test √
Data hold √
Backlight √
Low battery indication √
Auto power off √
General Characteristics
Power 1.5V battery (R03)×2
Display 56.5mm x 36mm
Product color Red and grey
Product net weight 330g
Product size 175mm x 83mm x 53mm
Standard accessories Test leads
Condition – Brand New
Warranty – 30 Days
No Return .
Please check model Number and match with your Product.
Every product proper check Before Shipping
Shipping facility available in all India.
Fast shipping
Compatible with models
